Description
Ref.:	04465-25040
Huari No.:	HR1012

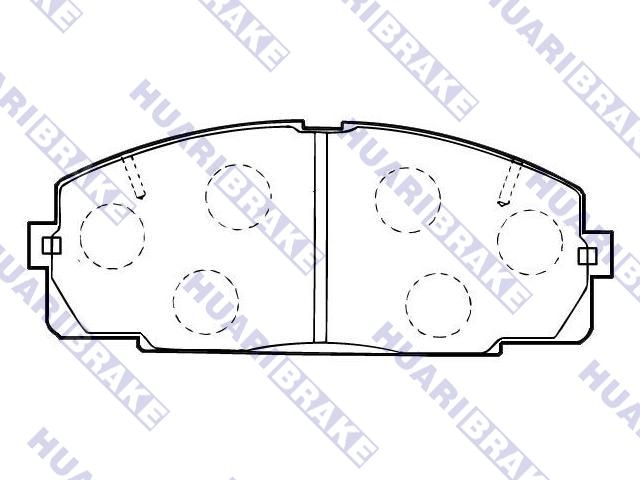

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : AKB Width : 145.4 mm Height : 56.9 mm Thickness : 15.5 mm

Model	Engine			Type	CYL	year
FOTON MPX MPV					3/07 - 2/08
MPX MPV 2.4	4 G 64	2350	125	MPV	4	3/07 - 2/08
JINBEI (BRILLIANCE) GRANSE MPV					2/04 - 2/05
GRANSE MPV 2.0	4G20D4L	1977	125	MPV	4	1/07 - /
GRANSE MPV 2.4	4RB2	2438	139	MPV	4	2/04 - 2/05
JINBEI (BRILLIANCE) HAISE II Bus					8/03 - 2/04
HAISE II Bus 2.2	491QME	2237	103	Bus	4	8/03 - 1/08
HAISE II Bus 2.4	4G24	2438	122	Bus	4	8/03 - 1/08
HAISE II Bus 2.4 12V	4 G 64 (12 V)	2350	131	Bus	4	8/03 - 2/04
TOYOTA HIACE II Box (H5_)					5/84 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 1.8 (YN5_)	2Y	1812	79	Box	4	3/83 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.0 (YH6_, YN5)	3Y	1998	88	Box	4	1/84 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.2 D (LH7_, LH5_, LH3_)	2Y	2173	67	Box	4	3/83 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.4 D (LH7_, LH6_, LH5_)	2Y	2446	75	Box	4	5/84 - 1/89
TOYOTA HIACE II Wagon (H5_)					8/84 - 8/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 1.8 (H5G)	L	1812	79	Bus	4	3/83 - 1/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.0 (YH51_, YH61_)	3Y	1998	88	Bus	4	1/85 - 8/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.2 D (H5G)	L	2173	67	Bus	4	3/83 - 1/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.4 D 4WD (H5F)	L	2446	73	Bus	4	1/87 - 1/88
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.4 D (H5G)	2L	2446	75	Bus	4	8/84 - 8/89
TOYOTA HIACE III Box (_H10_)					8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.0 (RCH102_, RCH112_)	1RZ	1998	101	Box	4	2/90 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 (RZH10)	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 4WD (RCH103_, RCH113_)	2RZ-E	2438	120	Box	4	8/89 - 8/95
TOYOTA HIACE III Wagon (_H10_)					8/89 - 7/95
HIACE III Wagon (_H1_) 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_)	2L	2446	78	Bus	4	8/87 - 2/04
HIACE III Wagon (_H1_) 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_)	2RZ-E	2438	120	Bus	4	8/89 - 7/95
TOYOTA HIACE IV Box (_H1_, _H2_)					1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	116	Box	4	8/95 - 2/05
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	2RZ-E	2438	116	Box	4	8/95 - 4/98
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Box	4	4/98 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	3RZ-FE	2694	144	Box	4	4/98 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	2L	2446	79	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	88	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	102	Box	4	1/01 - 8/06
TOYOTA HIACE IV Wagon (_H1_, _H2_)					1/01 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	115	Bus	4	8/95 - 4/98
HIACE IV Bus (_H1_, _H2_) 2.4 4WD (RCH18_)	2RZ-E	2438	116	Bus	4	8/95 - 4/98
HIACE IV Bus (_H1_, _H2_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Bus	4	4/98 - 1/01
HIACE IV Bus (_H1_, _H2_) 2.7 4WD (RCH19_)	2L-T	2694	143	Bus	4	4/98 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	144	Bus	4	1/01 - 2/06
HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_)	2L-T	2446	75	Bus	4	7/99 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_, LXH22_)	2L	2446	79	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 TD 4WD (H18/28)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.5 D-4D (KLH12_)	2KD-FTV	2494	88	Bus	4	1/01 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	102	Bus	4	1/01 - 8/06

Application

TOYOTA Hiace IV (Latin America) 2007

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
