Description
Ref.:	58101-4AA00
Huari No.:	HR1529

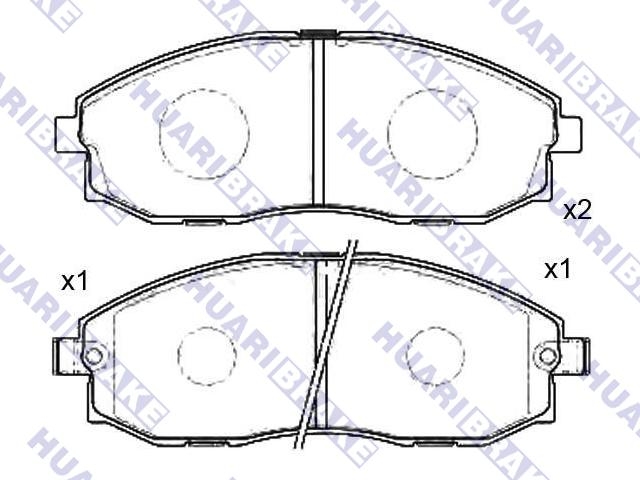

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : Mando Width : 147 mm Height : 53.8 mm Thickness : 17 mm

Model	Engine			Type	CYL	year
HYUNDAI H-1 Box (A1)					3/00 - 4/04
H-1 Box (A1) 2.4	G4CS	2351	112	Box	4	3/00 - 4/04
H-1 Box (A1) 2.5 TD	D4BF	2476	80	Box	4	3/00 - 9/00
H-1 Box (A1) 2.5 TD	D4BH	2476	99	Box	4	3/00 - 4/04
HYUNDAI H-1 Bus (KMF)					0/97 - 0/02
H-1 Bus (KMF) 2.4	G4CS	2351	112	Bus	4	0/97 - /
H-1 Bus (KMF) 2.4 4WD	G4CS	2351	112	Bus	4	0/97 - /
H-1 Bus (KMF) 2.5 TD	D4BF	2476	80	Bus	4	0/97 - /
H-1 Bus (KMF) 2.5 TD	D4BH	2476	99	Bus	4	0/99 - 1/01
H-1 Bus (KMF) 2.5 TD	D4BH	2476	101	Bus	4	1/01 - /
H-1 Bus (KMF) 2.5 CRDi 4WD		2497	140	Bus	4	2/02 - /
H-1 Bus (KMF) 2.6 TDiC	D4BB	2607	86	Bus	4	0/97 - 0/02
HYUNDAI H-1 Platform/Chassis					6/00 - 0/05
H-1 Platform/Chassis 2.5 D	D4BH	2476	99	Platform/Chassis	4	6/00 - 0/05
HYUNDAI PORTER Box					3/96 - 4/04
PORTER Box 2.4	G4CS	2351	111	Box	4	3/96 - 4/04
HYUNDAI PORTER Bus					3/96 - 4/04
PORTER Bus 2.4	G4CS	2351	111	Bus	4	3/96 - 4/04
HYUNDAI PORTER Pickup					3/96 - 4/04
PORTER Pickup 2.4	G4CS	2351	111	Pickup	4	3/96 - 4/04
HYUNDAI STAREX (H1)					1/01 - 4/04
H-1 / STAREX MPV (A1) 2.5 D	D4BF	2476	78	MPV	4	0/97 - 4/04
H-1 / STAREX MPV (A1) 2.5 TCi	D4BH	2476	99	MPV	4	0/97 - 2/07
H-1 / STAREX MPV (A1) 2.4 4WD	G4JS	2351	135	MPV	4	6/01 - 4/04
H-1 / STAREX MPV (A1) 2.4	G4JS	2351	145	MPV	4	1/01 - 4/04
H-1 / STAREX MPV (A1) 2.4	G4CS	2351	112	MPV	4	6/97 - 4/04
H-1 / STAREX MPV (A1) 2.4 4WD	G4CS	2351	112	MPV	4	2/98 - 4/04
H-1 / STAREX MPV (A1) 2.5 TD	D4BF	2476	80	MPV	4	6/97 - 4/04
H-1 / STAREX MPV (A1) 2.5 TD 4WD	D4BF	2476	80	MPV	4	2/98 - 4/04
H-1 / STAREX MPV (A1) 2.5 TD 4WD	D4BH	2476	99	MPV	4	3/01 - 4/04
H-1 / STAREX MPV (A1) 2.5 TD 4WD	D4BH	2476	101	MPV	4	1/01 - 4/04
JAC REFINE M5 I MPV					2/02 - 2/08
REFINE M5 I MPV 2.8 TD	HFC4DA1-1A	2771	109	MPV	4	8/07 - 2/08
REFINE M5 I MPV 2.0	HFC4GA3-1B	1996	136	MPV	4	1/02 - 2/08
REFINE M5 I MPV 2.4	G4JS	2351	139	MPV	4	2/02 - 2/08
JAC REIN Closed Off-Road Vehicle					2/06 - /
REIN Closed Off-Road Vehicle 2.0	HFC4GA3-1B	1996	136	Closed Off-Road Vehicle	4	6/07 - /
REIN Closed Off-Road Vehicle 2.4 AWD	G4JS	2351	139	Closed Off-Road Vehicle	4	2/06 - /

Application

HYUNDAI JAC Refine (China) 2002-2013

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
