Description
Ref.:	701 698 151

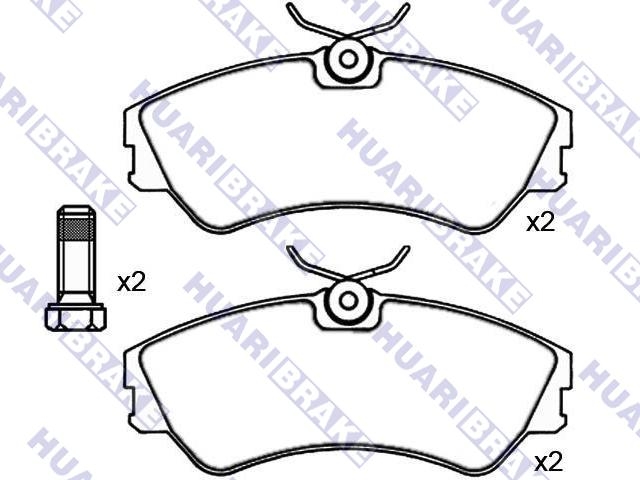

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : TRW Width : 130 mm Height : 54.5 mm Thickness : 19 mm

Model	Engine			Type	CYL	year
VOLKSWAGEN TRANSPORTER IV Box (70A, 70H, 7DA, 7DH)					9/95 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 1.9 D	1X	1896	61	Box	4	7/90 - 2/95
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 1.9 TD	ABL	1896	68	Box	4	0/92 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.0	AAC	1968	84	Box	4	7/90 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.4 D	AAB	2370	78	Box	5	7/90 - 4/98
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.4 D Syncro	AAB	2370	78	Box	5	0/92 - 9/98
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5	AAF	2461	110	Box	5	1/90 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 TDI	ACV	2461	102	Box	5	9/95 - 4/03
VOLKSWAGEN TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)					0/92 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0	AAC	1968	84	Bus	4	9/90 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D	AAB	2370	78	Bus	5	9/90 - 4/98
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro	AAB	2370	78	Bus	5	0/92 - 9/98
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AAF	2461	110	Bus	5	1/90 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	ACV	2461	102	Bus	5	9/95 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.8	PD	1781	67	Bus	4	2/90 - 7/92
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D	1X	1896	60	Bus	4	9/90 - 2/95
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD	ABL	1896	68	Bus	4	0/92 - 4/03
VOLKSWAGEN TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D					9/95 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 D	1X	1896	61	Platform/Chassis	4	7/90 - 2/95
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 TD	ABL	1896	68	Platform/Chassis	4	0/92 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.0	AAC	1968	84	Platform/Chassis	4	7/90 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D	AAB	2370	78	Platform/Chassis	5	9/90 - 4/98
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro	AAB	2370	78	Platform/Chassis	5	0/92 - 9/98
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AAF	2461	110	Platform/Chassis	5	1/90 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	ACV	2461	102	Platform/Chassis	5	9/95 - 4/03

Application

VOLKSWAGEN EuroVan (Latin America) 1990-2001

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
